BA%2F10K3H200DBB2

BA/10K-3-H200-D-BB2 | BAPI | Humidity

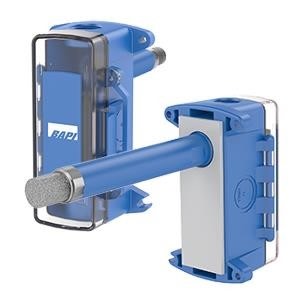

10K-3 Thermistor, ±2% Humidity Transmitter with Interchangeable Output of 0 to 5 V or 4 to 20 mA, Duct, BAPI Box 2

Manufacturer:BAPI

MPN:BA/10K-3-H200-D-BB2

SKU:BA/10K3H200DBB2

list price:

387.98

193.99



(login for better pricing)
USD

availability:Usually Ships in Less Than 7 Business Days

add to cart

arrow

product specifications

Accessory

DCPA-1.2||DCP-1.5-W||T81U-XR||T85U-XR||UR

Application

Humidification||Dehumidification||Supply||Discharge||Return Air||Economizers||Clean Rooms||Data Centers||Process Control||Schools||Hospitals||Office Buildings

Description

10K-3 Thermistor, ±2% Humidity Transmitter with Interchangeable Output of 0 to 5 V or 4 to 20 mA, Duct, BAPI Box 2

Housing Material

Poly

Housing Rating

NEMA 4||IP66

Humidity Accuracy

±2.00%

Output

0-5 VDC||4-20 mA

Sensor Element

10K Type III

Short Description

RH XMTR, DUCT, ±2.00%, 0-5 VDC OR 4-20 MA, 10K TYPE III

Type

Duct

product family features

  • Popular room housing
  • 2% Accuracy
  • Duct and OSA NEMA 4 housing
  • 24 VDC or 24 VAC power (field-selectable)
  • 4-20 mA, 0-10V, or 0-5V signal (field-selectable)
  • Field calibratable
  • Optional temperature sensor available
  • Optional room display
  • Optional setpoint available
  • Optional override button available

more information & related documents

Family Description

The BAPI BA/H200 Series ±2% accuracy humidity transmitters from BAPI are designed specifically for HVAC systems. Room sensors are available in the traditional Delta style enclosure or the new BAPI STAT 4. All Duct Units feature medical-grade closed cell foam to seal the probe insertion hole and to absorb vibration. All Outside Air Units have etched Teflon leadwires and are built to withstand high humidity and condensation and perform under real world conditions. Duct and OSA units are available in weatherproof enclosures selectable from IP66 or NEMA 3R. RH transmitter outputs include 4-20 mA, 0-5V, and 0-10V with replaceable sensor tips.

Kele Description

2% DUCT RH 4/20MA XMTR BAPI BOX2 10K OHM 3 THMS

Manufacturer

BAPI
