HomeProductsHumidityHU-224/225 SeriesHU-224-3-MA
HU2243MA

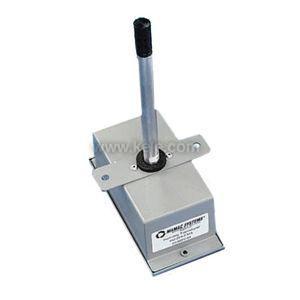

HU-224-3-MA | MAMAC Systems | Humidity

Relative Humidity Transmitter, Duct Mount, ±3%, 4-20 mA 2-wire, No Temperature

Manufacturer:MAMAC Systems

MPN:HU-224-3-MA

SKU:HU2243MA

list price:

216.77

108.39



(login for better pricing)
USD

availability:In Stock

add to cart

arrow
view product datasheetview installation instructions

product specifications

Accessory

DCPA-1.2||DCP-1.5-W||UR

Application

Humidification||Dehumidification||Supply||Discharge||Return Air||Economizers||Clean Rooms||Data Centers||Process Control||Schools||Hospitals||Office Buildings

Description

Relative Humidity Transmitter, Duct Mount, ±3%, 4-20 mA 2-wire, No Temperature

Housing Material

Metallic

Housing Rating

NEMA 4||IP65

Humidity Accuracy

±3.00%

Output

4-20 mA

Probe Length

6.00"

Short Description

RH XMTR, DUCT, ±3.00%, 4-20 MA, NO TEMP

Type

Duct

product family features

more information & related documents

Family Description

The MAMAC Systems HU-224/225 Series Wall and Duct Humidity transmitters are specifically designed for use in HVAC/BAS applications. These instruments measure relative humidity from 0% to 100%. The MAMAC Systems HU-224 Series Wall Humidity transmitters has single 4-20 mA or 0-5/10 vdc output for humidity. The MAMAC Systems HU-225 Series Duct Humidity transmitters has single 4-20 mA or 0-5/10 vdc output for humidity.

Kele Description

3% HUM XDCR DUCT

Manufacturer

MAMAC Systems

Related Documents

PDF - HU-224/225 Installation Manual.pdf HU-224/225 Installation Manual
PDF - HU-224/225 Datasheet.pdf HU-224/225 Datasheet
