FT315RS1DDMBG3

FT3-15RS1DDMBG3 | Fox Thermal Instruments | Flow

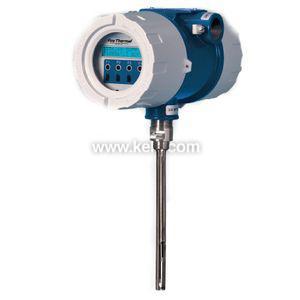

15" PRB 125 Retractor 24VDC Modbus 0-1000 SCFM Natural Gas

Manufacturer:Fox Thermal Instruments

MPN:FT3-15RS1DDMBG3

SKU:FT315RS1DDMBG3

list price:

11,729.63

5,864.82



(login for better pricing)
USD

availability:Usually Ships in Less Than 15 Business Days

add to cart

arrow

product specifications

Description

15" PRB 125 Retractor 24VDC Modbus 0-1000 SCFM Natural Gas

Short Description

AIR FLOW, TRANSMITTER, ±1%, 15", MODBUS, LCD, METAL, NEMA 4X

product family features

  • Measures gas flow rate in SCFM, SCFH, NM3M, NM3H, KG/M, KG/H, and more, for complete choice in units
  • Two 4-20 mA analog outputs, flow rate and temperature
  • RS485-Modbus, Isolated BACnet MS/TP, Profibus-DP, DeviceNet and Ethernet Modbus TCP models available for network communication
  • Insertion or inline mounting styles for installation choices
  • All welded 316SS sensor construction and no moving parts for durability and long life
  • Field programmable for flexibility in configuration
  • Standard NEMA 4X enclosure designed for Class I, Division 2, Groups B, C, and D
  • NIST traceable calibration standard to assure accuracy
  • Free FT2A View™ Software available

more information & related documents

Family Description

The Fox FT2A Series thermal mass flow meters are perfect for measuring flow of natural gas, compressed air, propane, oxygen, and most common gases. The flow meters measure both flow rate and temperature with isolated 4-20 mA outputs for both variables. In addition, a separate pulse output can be used for logging total gas flow. The FT2A mass flow meters measure gas flow velocity as low as 50 sfpm (standard feet/minute) and as high as 50,000 sfpm, without the need for temperature or pressure compensation. Each flow meter is calibrated at the factory using the same gas as the application. As a result, the FT2A more than meets EPA accuracy requirements for monitoring both boiler intake gas and combustion emissions. Standard models include a 2 line x 16 character bright white backlit display for viewing flow rate, flow total, elapsed time, process gas temperature and alarms. The FT2A has an integral keypad for setting parameters such as signal spans, pulse frequency scaling, pipe area, zero cutoff, filtering, diagnostics and alarms. The FT2A Series is available in two styles, inline or insertion. The inline models (male NPT) include built-in flow conditioners which reduce the need for long straight runs of upstream and downstream pipe. The most common inline sizes are 1/2" to 2" and other inline sizes are available. The insertion models install in a 3/4" coupling (field provided) and are available in insertion lengths to fit pipes from 1-1/2" to 72". Both inline and insertion styles come standard with stainless steel wetted parts, an integral NEMA 4X enclosure rated for Class I, Div. 2, Groups B,C,D hazardous areas, and a NIST calibration certificate.

Kele Description

15IN PRB 125 RETRCTR 24VDC MODBS 0-1K SCFM NATGAS

Manufacturer

Fox Thermal Instruments
