3LSE-06L35/DC24-310-T-D-WS | Bray | Control Valves

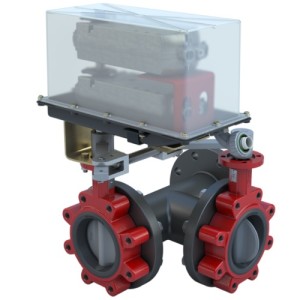

6 inch 3-Way Lugged Butterfly Valve Resilient Seated, ANSI Class 125/150, Ductile Iron Body, 316 Stainless Steel Disc, Seat EPDM, CV 1900, Bubble tight leakage, Close-Off Pressure Rating 50 PSI, Damper & Valve actuator, 24 VAC, 310 lb-in, floating, Non-Spring Return, Dual, IP54, Time out, Weather Shield for Tandem DC-310 Actuators
Brand:Bray
MPN:3LSE-06L35/DC24-310-T-D-WS
SKU:3LSE-06L35/DC24-310-T-D-WS
List Price:
$6,826.00
Today's Price:
$3,549.52
Log in for customized pricingproduct specifications
Options
Dual Mounted,Weather Sheild,Time Out
Type
Assembly
Close Off Pressure
50 psi
Actuator Type
Non-Spring Return
Medium
Water/Glycol
Valve Type
Resilient Seated
Enclosure Rating
IP54
Cv
1900 CV
Supply Voltage (Nominal)
24 VAC
Pattern
3-way
Size
6 in
Actuator Power Type
Electric
Fail Position
Last
Control Signal
Floating
product series specifications
Size Range: 2-Way Valves – 2" through 24" (DN50 to 600) 3-Way Valves – 2" through 20" (DN 50 to 500)
End Connections: ANSI 125/150 Lug/Flanged
Temperature Range: -20° to 250°F (-29° to 121°C)
Body Material: Ductile Iron
Disc Material: 316 Stainless Steel | Nylon/Ductile Iron (ASTM A536)
Configurations: 2-Way, 3-Way
product series features
- High purity Peroxide Cured EPDM seats
- Nylon coated ductile iron disc - 3LNE Series
- Dead-End Service Rated
- Wide variety of direct mount actuators
- Full and 50 PSI close-off pressure ratings available
more information & related documents
Series Description
Bray’s 3L Series Nylon 11 coated and Stainless Steel disc resilient seated butterfly valves are designed for maximum reliability and low torque for the most efficient automation possible.
Kele Description
6IN,3W,ANSI 125/150,DI BDY,SS DISC,CV 1900,24VAC,310LB-IN,FLTG,NSR,DUAL,TIME OUT,WTHR SHLD
Manufacturer
Bray
3L Series Submittal
