3LSE-04S37/DC24-310-T-D | Bray | Control Valves

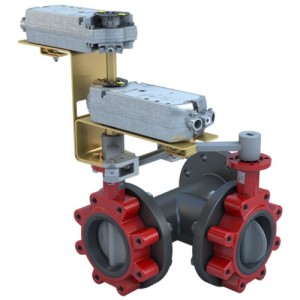

4 inch 3-Way Lugged Butterfly Valve Resilient Seated, ANSI Class 125/150, Ductile Iron Body, 316 Stainless Steel Disc, Seat EPDM, CV 740, Bubble tight leakage, Close-Off Pressure Rating 175 PSI, Damper & Valve actuator, 24 VAC, 310 lb-in, floating, Non-Spring Return, Dual, IP54, Time out

Brand:Bray

MPN:3LSE-04S37/DC24-310-T-D

SKU:3LSE-04S37/DC24-310-T-D

List Price:

$4,409.00

Today's Price:

$2,292.68

Lead time of > 15 days. Chat with Kele experts now

product specifications

Options

Dual Mounted,Time Out

Type

Assembly

Close Off Pressure

175 psi

Actuator Type

Non-Spring Return

Medium

Water/Glycol

Housing

Weather Shield

Valve Type

Resilient Seated

Enclosure Rating

IP54

740 CV

Supply Voltage (Nominal)

24 VAC

Pattern

3-way

Size

4 in

Actuator Power Type

Electric

Fail Position

Last

Control Signal

Floating

product series specifications

Size Range: 2-Way Valves – 2" through 24" (DN50 to 600) 3-Way Valves – 2" through 20" (DN 50 to 500)

End Connections: ANSI 125/150 Lug/Flanged

Temperature Range: -20° to 250°F (-29° to 121°C)

Body Material: Ductile Iron

Disc Material: 316 Stainless Steel | Nylon/Ductile Iron (ASTM A536)

Configurations: 2-Way, 3-Way

product series features

High purity Peroxide Cured EPDM seats
Nylon coated ductile iron disc - 3LNE Series
Dead-End Service Rated
Wide variety of direct mount actuators
Full and 50 PSI close-off pressure ratings available

more information & related documents

Series Description

Bray’s 3L Series Nylon 11 coated and Stainless Steel disc resilient seated butterfly valves are designed for maximum reliability and low torque for the most efficient automation possible.

Kele Description

4IN,3W,ANSI 125/150,DI BDY,SS DISC,CV 740,24VAC,310LB-IN,FLTG,NSR,DUAL,TIME OUT

Manufacturer

Bray
