3LSE-04L39/DCMS24-140-D | Bray | Control Valves

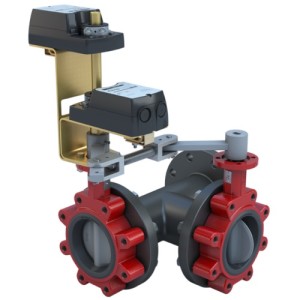

4 inch 3-Way Lugged Butterfly Valve Resilient Seated, ANSI Class 125/150, Ductile Iron Body, 316 Stainless Steel Disc, Seat EPDM, CV 310, Bubble tight leakage, Close-Off Pressure Rating 50 PSI, Damper & Valve actuator, 24 VAC/Dc, 140 lb-in, modulating, Spring Return, Dual, Nema 2, IP54, Input Signal 0 to 10 VDC
Brand:Bray
MPN:3LSE-04L39/DCMS24-140-D
SKU:3LSE-04L39/DCMS24-140-D
List Price:
$4,768.00
Today's Price:
$2,479.36
Log in for customized pricingproduct specifications
Options
Dual Mounted,Manual Override Handwheel
Type
Assembly
Close Off Pressure
50 psi
Actuator Type
Spring Return
Medium
Water/Glycol
Valve Type
Resilient Seated
Enclosure Rating
IP54,NEMA 2
Cv
740 CV
Supply Voltage (Nominal)
24 VAC,24 VDC
Pattern
3-way
Size
4 in
Actuator Power Type
Electric
Fail Position
L
Control Signal
Analog
product series specifications
Size Range: 2-Way Valves – 2" through 24" (DN50 to 600) 3-Way Valves – 2" through 20" (DN 50 to 500)
End Connections: ANSI 125/150 Lug/Flanged
Temperature Range: -20° to 250°F (-29° to 121°C)
Body Material: Ductile Iron
Disc Material: 316 Stainless Steel | Nylon/Ductile Iron (ASTM A536)
Configurations: 2-Way, 3-Way
product series features
- High purity Peroxide Cured EPDM seats
- Nylon coated ductile iron disc - 3LNE Series
- Dead-End Service Rated
- Wide variety of direct mount actuators
- Full and 50 PSI close-off pressure ratings available
more information & related documents
Series Description
Bray’s 3L Series Nylon 11 coated and Stainless Steel disc resilient seated butterfly valves are designed for maximum reliability and low torque for the most efficient automation possible.
Kele Description
4IN,3W,ANSI 125/150,DI BDY,SS DISC,CV 310,24VAC/DC,140LB-IN,MOD,SR,DUAL
Manufacturer
Bray
3W-3L_IOM
