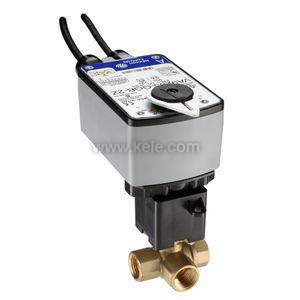

VG1845CN+923BGA | Johnson Controls | Control Valves

1" 3-Way Ball Valve, 11.7Cv, Stainless Steel Trim, Spring Open, No Switch, On/Off 24VAC

3W, 1 IN CV=11.7, SR 2POS 24V, NO

The Johnson Controls VG1000 Series ball valves are available with two- and three-way body patterns with a characterized insert for equal percentage flow control and Cv ratings in the range of traditional globe valves. They are available in connection sizes from 1/2" to 2" (Cv's from 1.2 to 73.7). The VG1000 Series valves are used in combination with spring return and non-spring return direct-coupled actuators from Johnson Controls. The VG1000 Series are designed to control chilled water, hot water, 50% glycol, and 15 psig steam (stainless trim models only).

3W, 1 IN CV=11.7, SR 2POS 24V, NO

Johnson Controls
