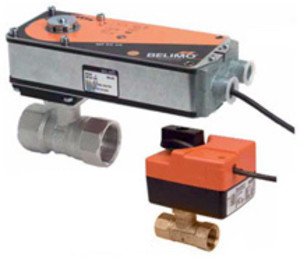

B214B+LRB120-SR | Belimo | Control Valves
"CCV||0.5""||2 Way||7.4 Cv||w/ Non-Spring||100-240V||Modulating"
Manufacturer:Belimo
MPN:B214B+LRB120-SR
SKU:B214B/LRB120-SR
List Price:
$374.00
Today's Price:
$209.44
product specifications
Actuator Series
LR
Agency Listings
cULus acc. to UL60730-1A/-2-14|| CAN/CSA E60730-1:02|| CE acc. to 2004/108/EC and 2006/95/EC
Ambient Temperature Range
-22°F to 122°F [-30°C to 50°C]
Angle of Rotation
90°
Application Type
Water
Ball
chrome plated brass
Body
forged brass|| nickel plated
Body Pressure Rating (psi)
600
Characterized Disc
TEFZEL®
Close-Off Pressure
200 psi
Control
Modulating
Control Type
Modulating
Controllable Flow Range
75°
Cv
7.4
Description
"CCV||0.5""||2 Way||7.4 Cv||w/ Non-Spring||100-240V||Modulating"
Direction of Rotation (Motor)
reversible with built-in switch
Electrical Connection
"3 ft [1 m]|| 18 GA appliance cable with 1/2"" conduit connector"
End Fitting
NPT female ends
Fail-Safe
Non-Spring Return
Feedback Output U
2 to 10 VDC
Fitting Actuator
LRB120-SR
Fitting Valve
B214B
Flow Characteristic
equal percentage
Flow Characteristic Type
equal percentage
Flow Pattern
2-Way
Housing
NEMA 2|| IP42|| UL enclosure type 2
Input Impedance
100 k Ω for 2 to 10 VDC (0.1 mA)|| 500 Ω for 4 to 20 mA
Leakage
0% for A to AB
Manual Override
external push button
Media Temperature Range (Water)
0°F to 250°F [-18°C to 120°C]
Model -numb-
B214B+LRB120-SR
Noise Level (Motor)
<35 dB (A)
Position Indication
integrated into handle
Power Consumption Holding
1 W
Power Consumption Running
2.5 W
Power Supply
100-240 VAC ± 20%|| 50/60 Hz
Power Supply Type
100 to 240V
Product family
Characterized Control Valve
Quality Standard
ISO 9001
Running Time
90 seconds
Running Time (Motor)
90 sec
Seat
Teflon® PTFE
Seat O-ring
EPDM (lubricated)
Service
chilled|| hot water|| up to 60% glycol
Servicing
maintenance free
Size (mm)
"0.5"" [15]"
Stem
nickel plated brass
Storage Temperature Range
-40°F to 176°F [-40°C to 80°C]
Synonyms
B214B+LRB120SR|| B214BLRB120SR|| Belimo B214B+LRB120-SR
Transformer Sizing
4.5 VA (class 2 power source)
Unit of Measure
PC
Valve Trim
Chrome plated brass
product family features
- Equal percentage characteristic (2-way)
- Large Cv range from 0.8 to 170
- Assembled, ready for installation
- Spring return or non-spring return actuators
- Floating, two-position, or proportional control
more information & related documents
Family Description
The B2 Series 2-way ball valves and B3 Series 3-way ball valves are used for two-position, floating or proportional control of HVAC hot or chilled water. Perfect for HVAC applications and Building Automation Systems, BAS, each two-way and three-way ball valve comes assembled with direct-coupled Belimo electric actuators with spring return or non-spring return operation.
Kele Description
2W /1/2IN/CV 7.4/NSR/45IN-LB/2-10 VDC/120V
Manufacturer
Belimo
