ESP-PT0-VT | Kele | Alarms & Indication
PUSH-TWIST PLATE VENT START
Brand:Kele
MPN:ESP-PT0-VT
SKU:ESP-PT0-VT
List Price:
$1,029.00
Today's Price:
$535.08
Availability: Usually Ships in Less Than 6 Business Days
product specifications
Mount
Plate Mount
Type
Push Twist
Display
Emergency - Ventilation Start
NEMA Rating
NEMA 1, 3R, 4, 4X, 12, 13
Switch Action
Maintained
Legend
Vent. Start
product series specifications
- Contact Rating:
- :
- ES-NO 10A, 600 VAC
- :
- ES-NC 2.5A, 600 VDC
- Standard Contacts:
- 1 N.O. and 1 N.C. (Included)
- Added Contacts:
- 4 maintained total or 6 momentary total
- Mechanical Life:
- Contact 10 million operations
- Contact Type:
- Self-cleaning silver contacts
- Contact Resistance:
- <25 milli-ohms closed
- Operating Temperature:
- -13° to 158°F (-25° to 70°C)
- Enclosure Rating:
- NEMA 1, 3R, 4, 4X, 12, 13
- Dimensions:
- 4.5‚Ä=H X 2.75‚Ä=W X 0.63‚Ä=D
- :
- (11.4 X 7 X 1.6 cm)
- Weight:
- 0.58 lbs (0.26kg)
- Approvals:
- UL Listed NISD File# E348889
- Warranty:
- 1 year
product series features
- Stainless steel plate mounted
- Highly visible yellow/black background
- UL listed for Category NISD Emergency Stop Devices
- 40mm Red Mushroom Operators
- 1 N.O. and 1 N.C. contact included
more information & related documents
Series Description

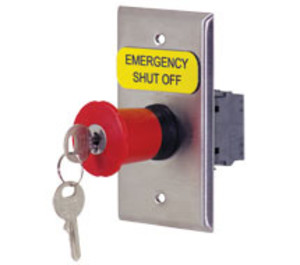

The E-Stop ESP Series emergency operator stations offer a highly visible method to shut down equipment, initiate alarms, or give a controller input during emergency conditions. The ESP Series consists of a stainless steel plate with a 40mm mushroom head push-button. The button may be reset with a pull or twist of the mushroom head, depending on the button style.
Kele Description
PUSH-TWIST PLATE VENT START
Manufacturer
Kele
